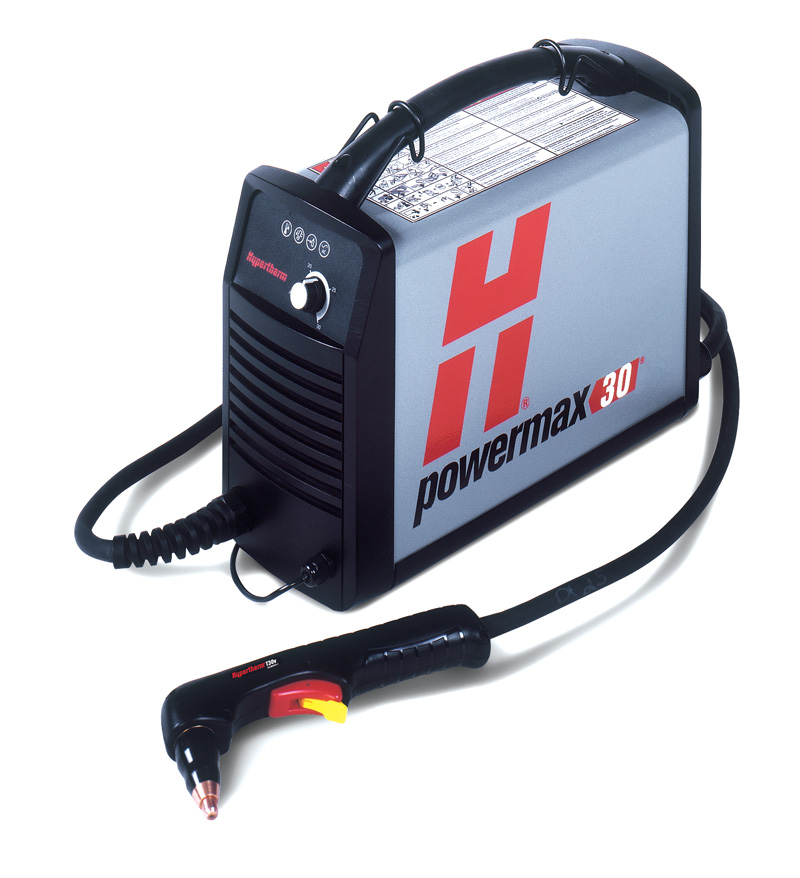

Hypertherm Powermax 30 Plasma Cutter

Powermax30

ApplicationsHand cutting

Standard system components

Power supply

T30v hand torch

Extra consumables for cutting

Work cable with clamp, 15' (4.5m)

CSA units include 240/20 amp plug with adapter plugs for 120 V/15 amp and 240 V/20 amp circuits

Deluxe system components

All standard system components plus:

Rugged carrying case

Enhanced consumable kit

Plasma cutting guide

Cutting gloves

Shoulder strap

Specifications
Input Voltages
120 - 230 V, 1-PH, 50/60 Hz
Input Current @ 2.49 kW 120 - 230 V, 1PH: 26-13.5 A
Rated output Voltage 83 VDC
Output current 15 - 30 A
Duty cycle @ 40Â°C (104Â°F) 35% @ 30 A, 115 V 50% @ 30 A, 230 V
Output for 100% duty cycle
@ 40Â° C (104Â° F) 18 A @ 120 V
21 A @ 230 V
Maximum OCV 240 VDC
Dimensions with handle 12" H (305 mm); 6.6" W (168 mm);
14" D (356 mm)
Weight with Torch 20 lbs (9 kg)
Gas Supply Clean, dry, oil-free air or nitrogen
Flow rate 3.5 scfm @ 65 psi (99.1 l/min @ 4.5 bar)
Flow pressure 80 - 100 psig (5.5 - 6.9 bar)
Input power cable length 10' (3 m)
Work cable length 15' (4.5 m)
Warranty period Full 3-year power supply warranty and a 1-year torch warranty.

[ « Back ]

(Click image to enlarge)

Item #088003

$1,050.00
Quantity
