WELCOME TO G&E WELDING SUPPLY!

Located in New Castle, Delaware, G&E Welding Supply provides Welding & Industrial Supplies and service to the tri-state area -- Delaware, Pennsylvania, and New Jersey.

Browse our website and be sure to check out our Featured Items.

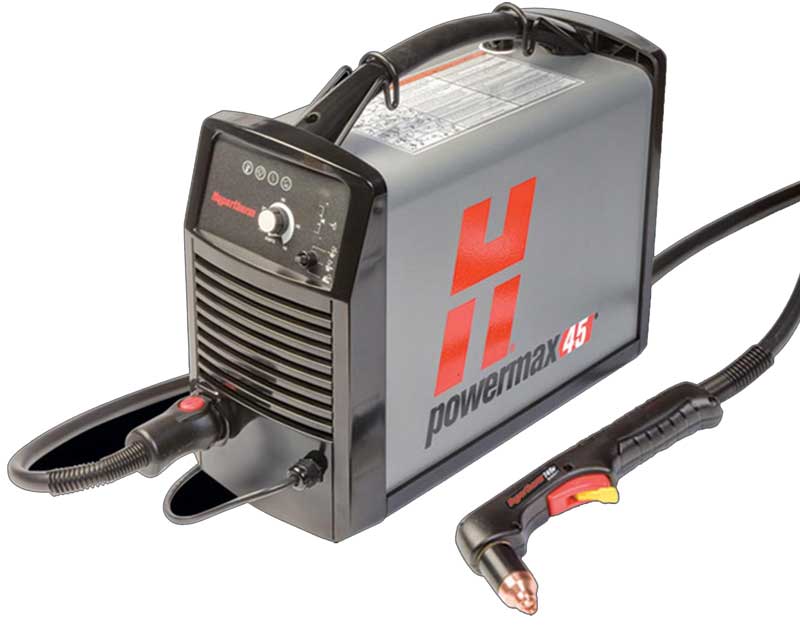

Hypertherm Powermax 45 Plasma Cutter

The Powermax45 is the most versatile and most portable 1/2" (12 mm) machine on the market, with a broad set of application capabilities that make it a truly multi-purpose tool.

Standard system components

# Power supply
# T45v hand torch
# Extra consumables for cutting and gouging
# Work cable with clamp, 20' (6 m)
# Carry strap

Applications

# Hand cutting
# Gouging
# Mechanized cutting
- X-Y Span table
- Track systems
- Pipe systems
- Robotic systems

Key advantages:

# Small size and light weight provide unmatched portability among 1/2" (12 mm) machines.
# Conical Flowâ¢ increases arc energy density for superior cut quality with little dross.
# Pattened drag-cutting technology makes it easy to use - even for first-time operators.
# Boost Conditionerâ¢ compensates for input voltage variations on 200 - 240 V lines, providing improved performance on low-line voltage, on motor generators and on fluctuating input power.
# CNC interface and FastConnectâ¢ torch connection increase versatility for handheld and mechanized usage.
# Dual-angle design extends nozzle life and lowers operating cost.
# Powercoolâ¢ design cools internal components more effectively for greater system reliability and improved uptime.

Specifications
Input Voltages
200 - 240 V, 1-PH, CSA

Input Current @ 5.95 kW 200 - 240 V, 34 - 28 A, 1 - PH, CSA

Rated output Voltage 132 VDC
Output current 20 - 45 A
Duty cycle @ 40ÃÂ°C (104ÃÂ°F) 50% @ 45 A, 132 V
60% @ 41 A, 132 V
100% @ 32 A, 132 V
Output for 100% duty cycle
@ 104ÃÂ°F (40ÃÂ°C) 32 A @ 132 V
Dimensions with handle 16.75" (426 mm) D; 6.75" (172 mm) W;
13.7" (348 mm) H
Weight with Torch 37 lbs (16.8 kg) CSA
35 lbs (15.8 kg) CE
Gas Supply Clean, dry, oil-free air or nitrogen
Flow rate 360 scfh; 6 cfm (170 l/min)
Input power cable length 10' (3 m)
Work cable length 15' (4.5 m)
Warranty period Full 3-year power supply warranty and a 1-year torch warranty.

Operating data
Cut capacity Handheld
Recommended 1/2" (12 mm)
Maximum 3/4" (19 mm)
Severence 1" (25 mm)
Gouge Capacity
Metal removed per hour: 6.2 lbs (2.8 kg)
Depth x width: 1/8" (2.9 mm) x 1/4" (6.5 mm)

[ « Back ]

(Click image to enlarge)

Item #088016

$1,530.00
Quantity
